New JAYLOR 5750

JAYLOR
JAYLOR 5750
REQUEST A QUOTE

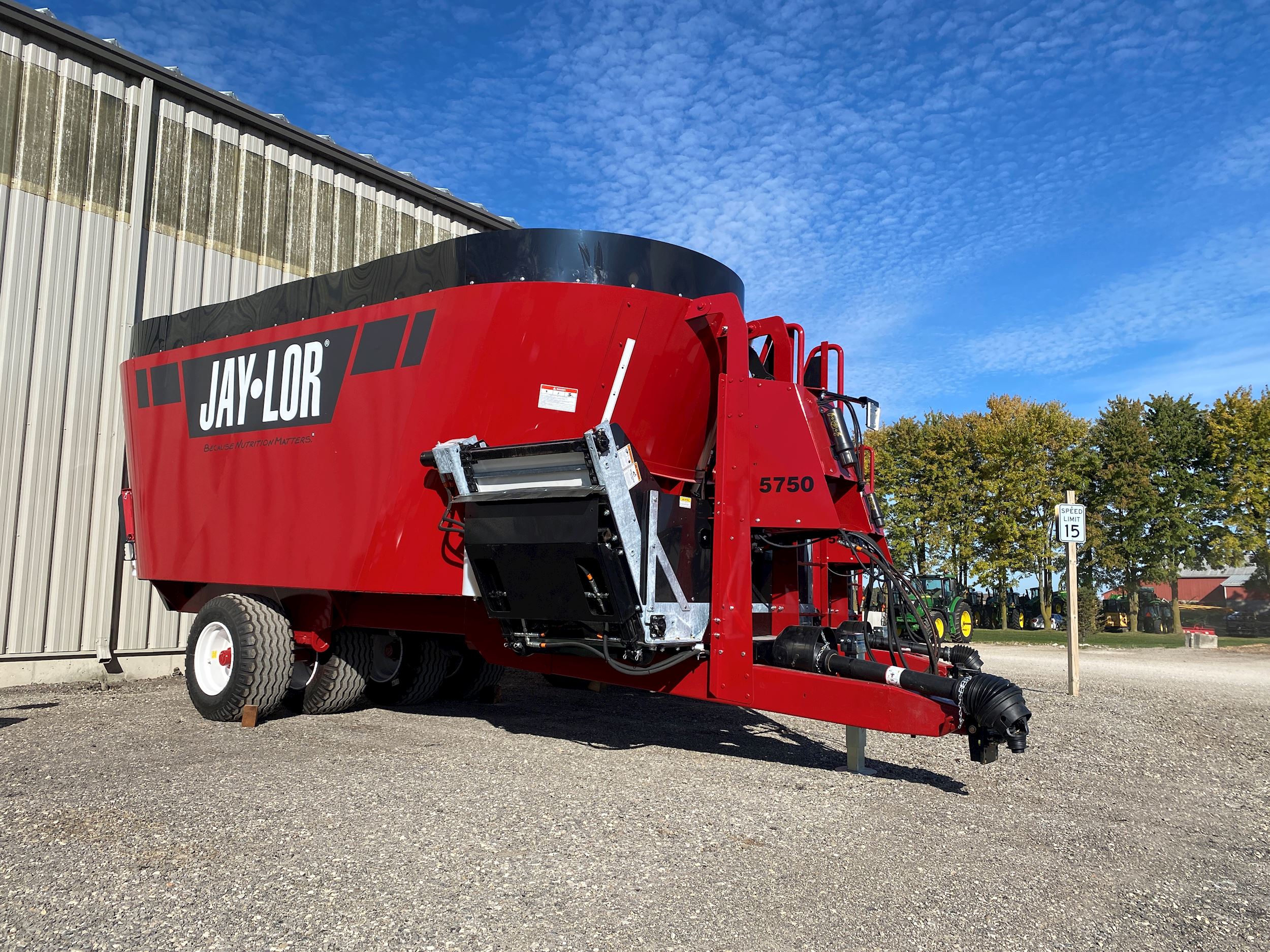

Model 5750 Trailer TMR mixer comes standard with The Jaylor Square-Cut auger which is the main reason Jaylor mixers outperform all other brands of vertical TMR mixers. Processes and mixes up to two, 5×6 or three, 4×5 round bales per load (3,550 lbs/1,610 kg of hay equivalent). With extension, suitable to feed up to 150 head of dairy cattle, or 185 beef cows, or 740 adult sheep/goats per load per day.

More Info

Standard Features

Square Cut Auger with Sloped Top
Slide Plate Technology
Tungsten Carbide Coated Knives
Welded Mixing Chamber
Shaker Box
Mixer Level
Mix Viewing Window
2 Restrictor Blades
Reinforced Frame
Rapid Discharge Door
Galvanized Discharge Conveyor
Heavy Duty Adjustable Cast Hitch
Heavy Duty Hubs
Dual Oscillating Axles
Ladder and Platform
3 Point Weigh System
Planetary Gearbox
Easy View Oil Reservoir

Optional Features:

  • Angling Blade Auger
  • Alexander Knives
  • Vertical Knives
  • Hay Ring
  • Plastic Extension Upgrade
  • Rear Door
  • Corner Door
  • Center Side Door
  • Drop Floor
  • 3′ Conveyor
  • Door Chute
  • Discharge Conveyor, Left or Right
  • Dual Discharge Flat Conveyor
  • Flip-Up Conveyor
  • Discharge Magnet
  • Rubber Flap
  • Dual Conveyor Boot
  • HD axle with Dual Tires 245/70R19.5
  • Fenders
  • Road Light
  • Battery Mount
  • Safety Chains
  • #8 Constant Velocity PTO
  • 2 Speed Transmission
  • Remote Transmission Shifter
  • STAD 04 PLUS² Indicator Upgrade
  • WIN SCALE² Indicator Upgrade
  • TOP SCALE IC Indicator Upgrade
  • Cab Remote Display
  • Weight Repeater Remote Display
  • Alphanumeric Remote Display
  • Dina-Tel 2 for Full display
  • Wi-Net Modem
  • P2P Major Functions Remote
  • Mixer Control by Office PC
  • Software For Mixer & Feeding Management
  • Motor Controller Automate Mixer Operation

Other Features:

  • Sloped top Square-Cut Auger
  • Rapid Discharge Door with Self-Cleaning Tracks
  • 3-Point Weigh System with DG500 Indicator
  • Patented Open Loop Oil Reservoir
  • Shaker Box to Optimize Your Mix
  • Heavy Duty Dual Oscillating Axles and Hubs
  • Structurally Reinforced Frame
  • Tungsten Carbide Coated Knives
  • Ladder and Viewing Window Standard

Capacity No Extension: N/A

Capacity 8" Extension: N/A

Capacity 12" Extension: 740ft³ | 21.0m³

Capacity 16" Extension: 780ft³ | 22.1m³

Weight: 13000lbs | 5900kg

Height: 112in | 284cm

Length: 290in | 737cm

Drum Width: 91in | 231cm

Pto Speed: 1000 RPM

Minimum Hp: 115 HP

Auger Speed: 38 RPM

Number Of Knives: 18

Auger Flighting Thickness: 5/8in | 16mm

Max Discharge Height: 60in | 152cm*

Conveyor Width: 36in | 91cm

Door Opening Width: 42in | 107cm

Floor Thickness: 5/8in | 16mm

Drum Wall Thickness: 1/4in | 6mm

Standard Tires: 15.0/55-17 26 PLY (4)

Wheel Assembly: Dual Oscillating

* with optional 72" conveyor
